Hydrocyclone

  • Lined with Xinhai wear-resistant rubber, the service life of the cyclone can be prolonged for 2-4 times.
  • Fluid moves stalbly in the cyclone, which improves the separation performance.

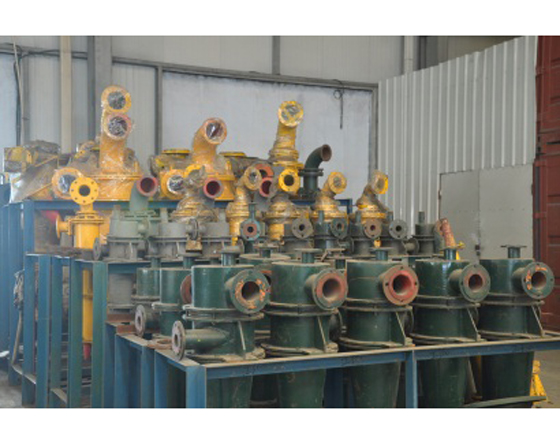

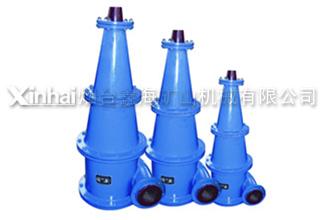

According to the different working environments, Xinhai wear-resistant hydrocyclones can be devided into:XCⅠ, XCⅡ and XCⅢ type.
Our technicians are ready to help you make the model selection!


Purchase now

0086 13810327080

Hydrocyclone

Product advantages

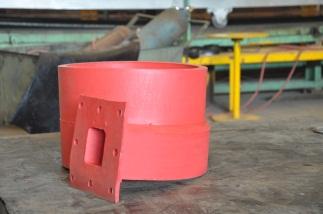

Lined with Xinhai wear-resistant rubber, hydrocyclone service life increased by 2 to 4 times.

The super wear-resistance of Xinhai rubber greatly reduced the cost of runnning cost. Meanwhile, it maintains the internal flow passage shape and size in a longer time to keep a stable classification efficiency. We can also provide molded and cold bonding high wear-resistant rubber lining. After verification by experiment, Xinhai wear-resistant rubber liner prolongs its service life for 2-4 times.

Stable inner flow rate improves the classification efficiency

Xinhai cyclone has no sharp edges or square corners. These improvements on design result in lower operating costs and fewer hydrocyclones required for a given duty.Reduced turbulence means improved efficiency and classification

The length proportion of column and cone section and reasonable insertion depth of overflow pipe ensures a higher separation efficiency.

The rational length proportion of cylinder and cone and reasonalble insert depth of overflow box result in high classification efficiency. With unique overflow pipe and cone structure, it can reduce the degree of overflow with coarse particles and underflow with fine particles.

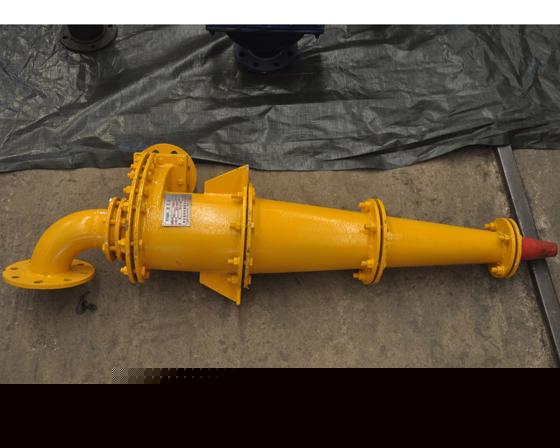

Xinhai XCⅠhydrocyclone

Xinhai XCⅠhydrocyclone is developed by Xinhai Company using CFD model, three dimensional analysis system and other professional design theories. It is a kind of high effective hydraulic cyclone with a world-leading level and it is maily used for classification and dewatering.

Product advantages: Unique three dimension snail-shaped feeding improves the classification efficiency.

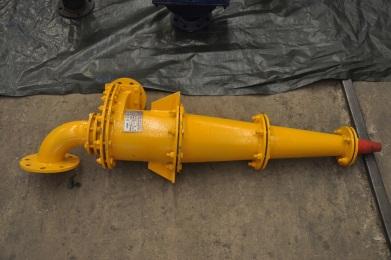

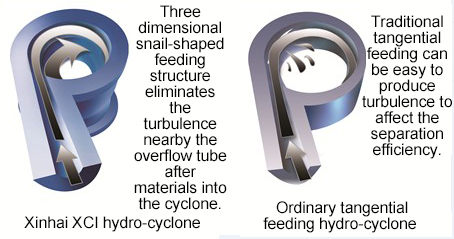

With three dimensional snail-shaped feeding structure,Xinhai XCⅠhydrocyclone achieves three dimension feeding from circle and axis direction to eliminate the confused flow disturb nearby the overflow tube after materials gets into the cyclone, which is good to improve the classifying efficiency.

Technical parameters

Type of cyclone Capacity(m /h) Classifying point(μm) Dia of overflow port(mm) Dia of spigot(mm) Inlet pressure(MPa)
150 10-23 25-74 30-50 8-22 0.060-0.15
200 17-38 28-80 40-65 16-32 0.060-0.15
250 24-53 30-82 65-100 16-40 0.060-0.15
300 40-100 36-90 65-120 20-40 0.060-0.15
350 56-118 40-100 80-120 30-70 0.060-0.15
400 74-157 42-105 90-135 30-70 0.060-0.15
450 90-192 44-110 100-150 30-70 0.060-0.15
500 128-300 50-115 130-220 35-100 0.060-0.15
550 155-368 52-120 140-240 35-100 0.060-0.15
610 200-468 57-125 160-260 65-110 0.060-0.15
660 237-524 60-130 180-280 80-150 0.060-0.15
710 285-580 63-135 200-280 120-160 0.060-0.15
Hydrocyclone
Xinhai XCⅡ hydrocyclone

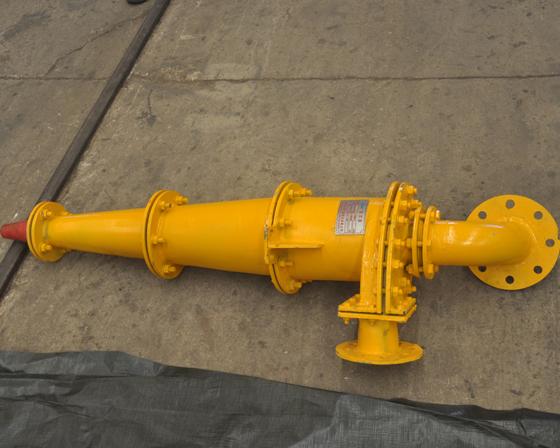

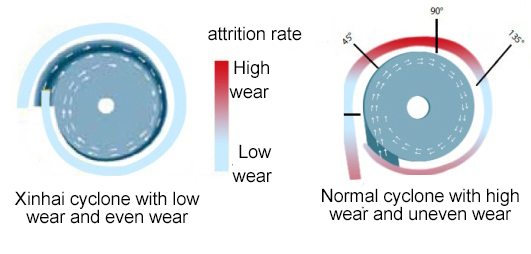

XCII developed by Xinhai Company reached a world-class advanced level. Silmilar to "Krebs" hydrocyclone, its tangentitally feeding materials through the inlet branch increases the centrifulgal force, therefore it can improve the classification level and reduce the wear and tear of the feeding box greatly. Comparison of Xinhai XCⅡ hydrocyclone and ordinary cycloneThe type of cyclone is especially suitable for classification operation.

Product:Unique involte feeding, reducing wear

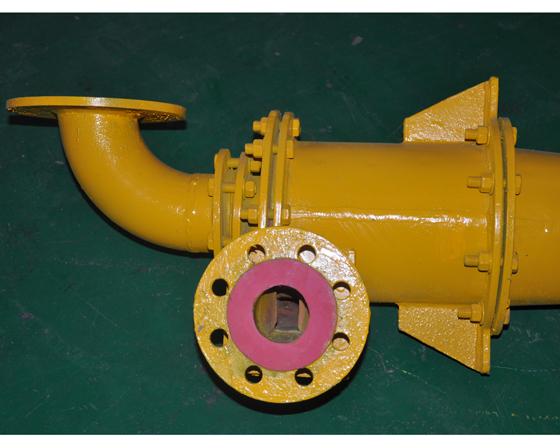

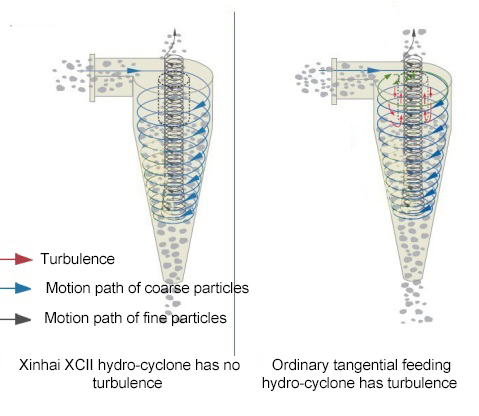

The way of involute feeding through the inlet branch reduces the turbulance of burst emanative flow when materials enterto make a smooth movement of liquid inside cyclone. Therefore it gives a sharp classification.

The way of involute feeding through the inlet branch lowers the impact on feeding box when materials fling to the cyclone.

Technical parameters

Cyclone specs Capacity(m /h) Cut size(μm) Vortex finder(mm) Spigot diameter(mm) Inlet pressure(MPa)
150 10-23 25-74 30-50 8-22 0.060-0.15
200 17-38 28-80 40-65 16-32 0.060-0.15
250 24-53 30-82 65-100 16-40 0.060-0.15
300 40-100 36-90 65-120 20-40 0.060-0.15
350 56-118 40-100 80-120 30-70 0.060-0.15
375 74-157 42-105 90-135 30-70 0.060-0.15
450 90-192 44-110 100-150 30-70 0.060-0.15
500 128-300 50-115 130-220 35-100 0.060-0.15
610 200-468 57-125 160-260 65-110 0.060-0.15
660 237-524 60-130 180-280 80-150 0.060-0.15
Xinhai XCⅢ hydrocyclone

XCⅢ hydrocyclone is developed by Xinhai Company which has reached a world-class advanced level

Especially suitable for dewatering operation.

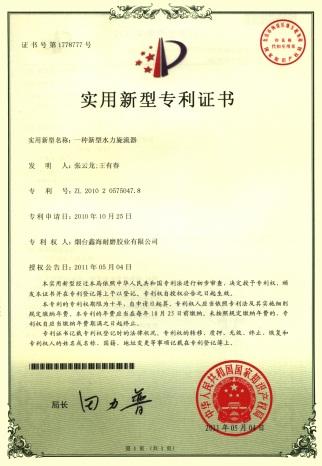

Hydrocyclone patent certificate

Product advantage:

1.National patent product, excellent dewatering effects

Yantai Xinhai XCⅢ hydrocyclone access to national utility model patents in 2010.

Patent No.:201020575043.X。

2. New structure, constant density of underflow, low energy consumption

Xinhia XCⅢ hydrocyclone has a fishtail design and siphon reguting assembly,ProfilesThe outlet pressure is reduced by siphoning, and the whole power consumption is reduced as a result.

After verification by experiment, Xinhai XCⅢ hydrocyclone reduces enery consumption by 2/3 than ordinary hydrocyclone.

The special designed fishtail can maintain a constant underflow discharge density and overflow fineness despite variations in feed volume, feed density and feed pressure in certain range.

Technical parameters

Cyclone specs Cpacity(m/h) Cut size(μm) Vortex finder(mm) Spigot(mm) Inlet pressure(MPa)
50 2-3.5 10-74 11-18 4-12 0.1-0.3
75 3.7-6.6 20-74 15-20 6-12 0.08-0.25
100 5.8-9 35-75 30-40 8-18 0.06-0.15
125 12.6-19 35-75 38-60 8-20 0.06-0.15
150 15-24 35-75 38-60 8-22 0.06-0.15
225 27.7-43 40-100 57-85 16-38 0.06-0.15
250 32-53 40-100 65-90 16-40 0.06-0.15
300 45-70 45-110 65-120 25-50 0.06-0.15
380 76-120 50-110 94-152 30-72 0.06-0.15
455 128-203 60-120 114-178 50-140 0.06-0.15
500 136-215 60-120 144-180 50-140 0.06-0.15
600 206-325 65-140 178-254 82-140 0.06-0.15

Product parameters

Application environment has great effect on the rubber selection, please let our technicans help you to make the best selection. technical consultation

Just tell us your requirement and query, we will reply as soon as possible.

Note: the Name,Tel,E-mail,Country and is required
